n 设备功能/Functions

液压马达综合性能测试试验台主要用于国防军工、工程机械领域的柱塞马达、齿轮马达、叶片马达等液压马达产品的效率、低速、超速、超载、起动效率试验等型式试验与出厂性能试验的测试。

Comprehensive Test Bench for Hydraulic Motor is mainly applied for the efficiency, low speed, over speed, overload, starting efficiency test and factory performance test of plunger motor, gear motor, blade motor and other hydraulic motor products in the field of defense military industry, construction machinery.

n 设备原理图与实物图/ Schematic diagram and physical diagram

图1试验台实物图/ physical diagram of the test bench

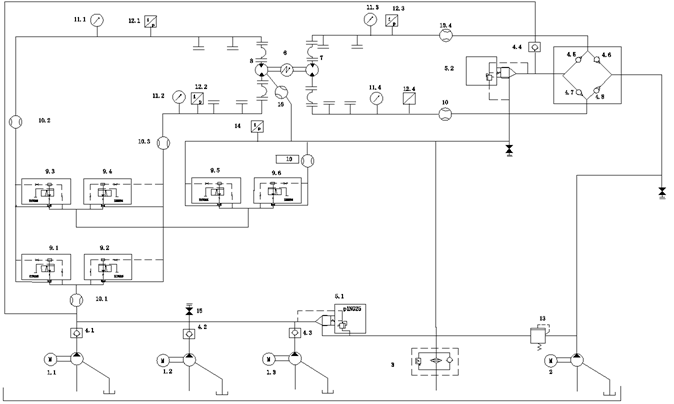

图2系统原理图/ Schematic diagram of the test bench

n 设备主要参数/Main Parameters

n 设备特点/Feature

1.液压马达试验台可根据被测马达技术参数选择由110KW/75KW/30KW液压动力源进行独立供油，也可同时进行供油。

According to the technical parameters of the tested motor, Comprehensive Test Bench for Hydraulic Motor can choose from 110 KW/75KW/30KW hydraulic power source to supply oil independently or simultaneously.

2.液压马达试验台具备42MPa连续工作能力，满足国防军工、工程机械领域的常规液压马达压力等级测试要求。

Comprehensive Test Bench for Hydraulic Motor has the ability to work continuously under 42 MPa, which meet the requirements of conventional hydraulic motor pressure grade test in the field of national defense military industry and construction machinery.

3. 液压马达试验台采用插装式单向阀组合，实现对被测马达及加载泵正反转的自动控制。

Comprehensive Test Bench for Hydraulic Motor adopts the combination of plug-in one-way valve to realize the automatic control of the measured motor and the loading pump.

4.液压马达试验台可作为高速液压泵试验的驱动源，通过增加相应模块，调整数据采集系统参数，实现高速液压泵性能试验的功能.

Comprehensive Test Bench for Hydraulic Motor can be used as the driving source of high-speed hydraulic pump test and realize the function of high-speed hydraulic pump performance test by adding corresponding modules and adjusting data acquisition system parameters.

n 设备能力/ capability
